Eluting Stent set
Product Information

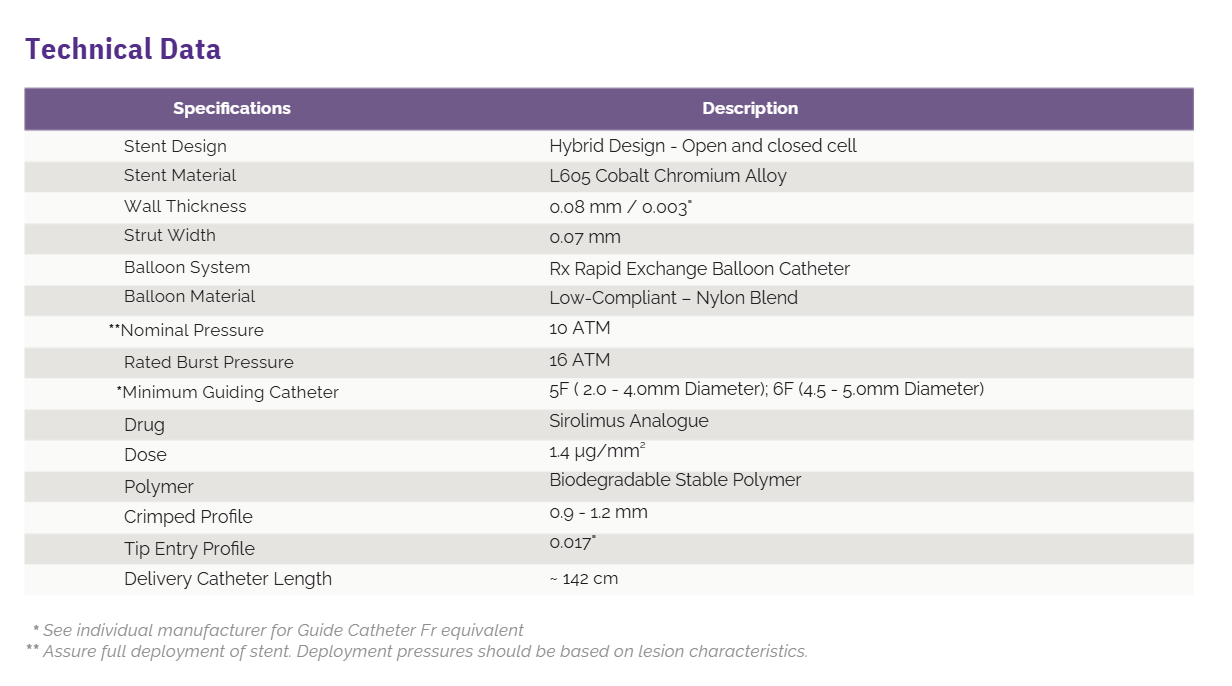

Technical Data
| Specification | Description |
|---|---|
| Stent Design | Hybrid Design - Open and closed cell |
| Stent Material | L605 Cobalt Chromium Alloy |
| Wall Thickness | 0.08 mm / 0.003 inch |
| Strut Width | 0.07 mm |
| Balloon System | Rx Rapid Exchange Balloon Catheter |
| Balloon Material | Semi-Compliant - Nylon Blend |
| **Nominal Pressure | 10 ATM |
| Rated Burst Pressure | 16 ATM |
| *Minimum Guiding Catheter | 5F (2.25-2.75 mm); 6F (3.0-5.0 mm) |
| Drug | Sirolimus Analogue |
| Dose | 2.0 μg/mm² |
| Polymer | PDLLA (Biodegradable Stable Polymer) |
| Crimped Profile | 0.9-1.2 mm |
| Tip Entry Profile | 0.0165 inch |
| Delivery Catheter Length | 142 cm |
* See individual manufacturer for Guide Catheter Fr equivalent.
** Assure full deployment of stent. Deployment pressures should be based on lesion characteristics.
Technical data should be read with the applicable approved Instructions for Use. Specifications and availability may vary by market.
Configurations

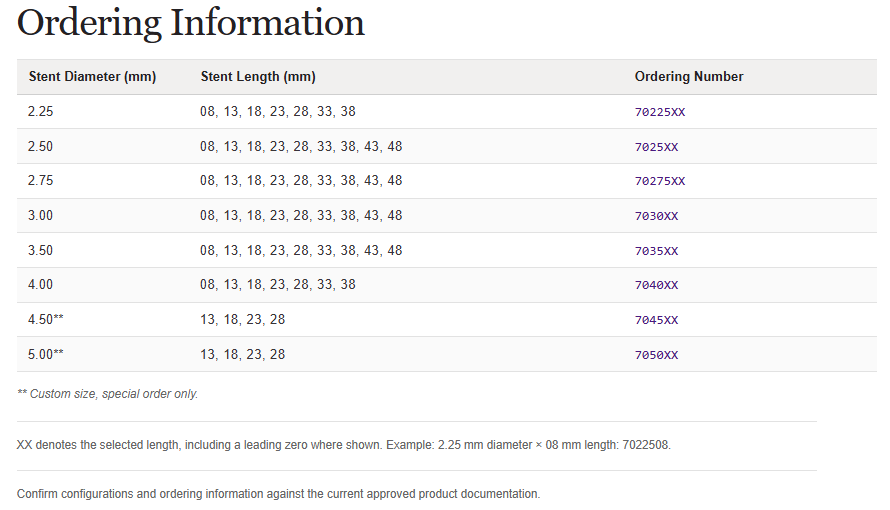

Ordering Information
| Stent Diameter (mm) | Stent Length (mm) | Ordering Number |
|---|---|---|
| 2.25 | 08, 13, 18, 23, 28, 33, 38 | 70225XX |
| 2.5 | 08, 13, 18, 23, 28, 33, 38, 43, 48 | 7025XX |
| 2.75 | 08, 13, 18, 23, 28, 33, 38, 43, 48 | 70275XX |
| 3.0 | 08, 13, 18, 23, 28, 33, 38, 43, 48 | 7030XX |
| 3.5 | 08, 13, 18, 23, 28, 33, 38, 43, 48 | 7035XX |
| 4.0 | 08, 13, 18, 23, 28, 33, 38 | 7040XX |
| 4.5 | 13, 18, 23, 28 | 7045XX |
| 5.0 | 13, 18, 23, 28 | 7050XX |
Lengths can be customized.
XX denotes the selected length, including a leading zero where shown. Example: 2.25 × 08 mm. Ordering number: 7022508.
Confirm configurations and ordering information against the current approved product documentation.
