Silene™ Covered Stent
Silene™ Covered Stent USA
Silene™Silene™ Covered Stent
SILENE™ COVERED STENT HAS YOU COVERED.
A covered stent indicated for ruptures, dissections, fistulae, aneurysms and saphenous vein grafts.
An ideal device for emergency use situations.
- Optimal trackability and deliverability in the tortuous anatomy
- Excellent flexibility and superior navigability in challenging lesions
- ePTFE polymer with proprietary micro-porous technology
- Mono layer graft stent with a U.S. Patented intravascular hybrid open-closed cell design
- Proprietary delivery catheter balloon pillowing technology
- Superior vessel conformance
- Optimum radial strength
- Lowest pre-mounted crimped profile

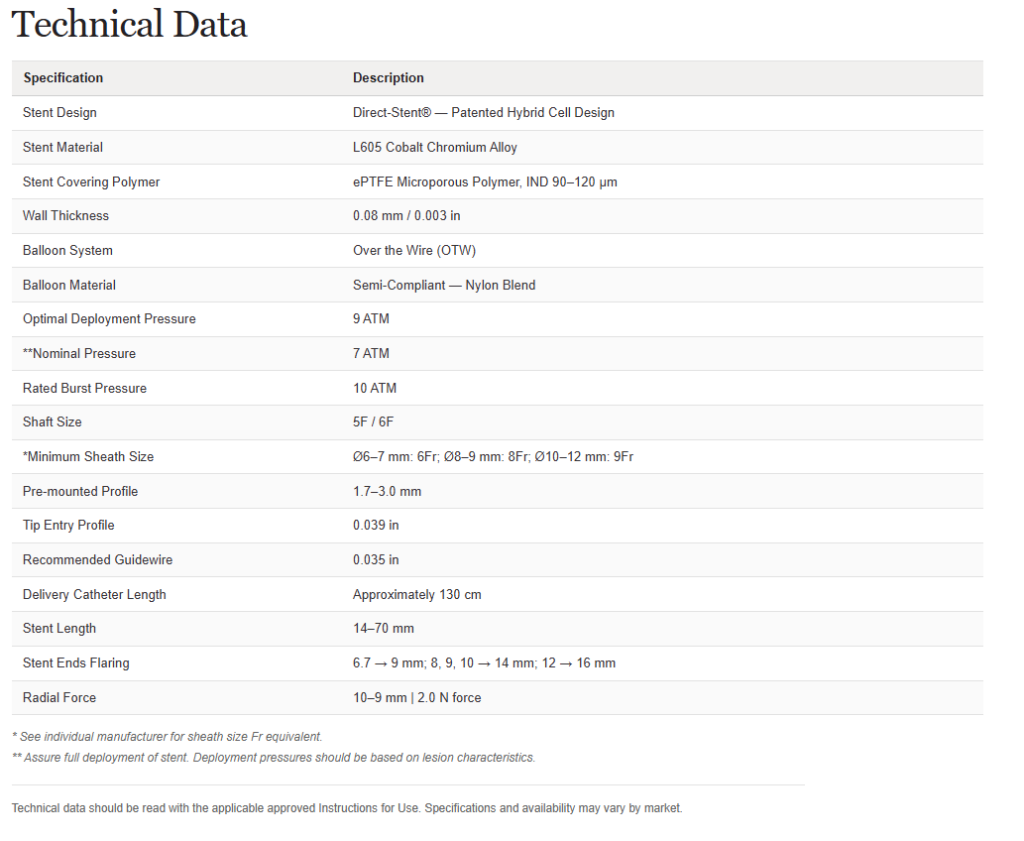

Silene™ — Product Specifications
| Specification | Description |
|---|---|
| Stent Design | Direct-Stent® — Patented Hybrid Cell Design |
| Stent Material | L605 Cobalt Chromium Alloy |
| Stent Covering Polymer | ePTFE Microporous Polymer, IND 90–120 μm |
| Wall Thickness | 0.08 mm / 0.003 in |
| Balloon System | Over the Wire (OTW) |
| Balloon Material | Semi-Compliant — Nylon Blend |
| Optimal Deployment Pressure | 9 ATM |
| Nominal Pressure** | 7 ATM |
| Rated Burst Pressure | 10 ATM |
| Shaft Size | 5F / 6F |
| Minimum Sheath Size* | Ø6–7 mm: 6Fr; Ø8–9 mm: 8Fr; Ø10–12 mm: 9Fr |
| Pre-mounted Profile | 1.7–3.0 mm |
| Tip Entry Profile | 0.039 in |
| Recommended Guidewire | 0.035 in |
| Delivery Catheter Length | Approximately 130 cm |
| Stent Length | 14–70 mm |
| Stent Ends Flaring | 6.7 → 9 mm; 8, 9, 10 → 14 mm; 12 → 16 mm |
| Radial Force | 10–9 mm | 2.0 N force |
* See individual manufacturer for sheath size Fr equivalent.
** Assure full deployment of stent. Deployment pressures should be based on lesion characteristics.
